A new Excel add-in converts an Excel 365 worksheet into a Visio diagram. You don’t need to buy Visio to use the Microsoft Visio Data Visualizer in its simple form, just Excel 365 for Windows/Mac or Online.

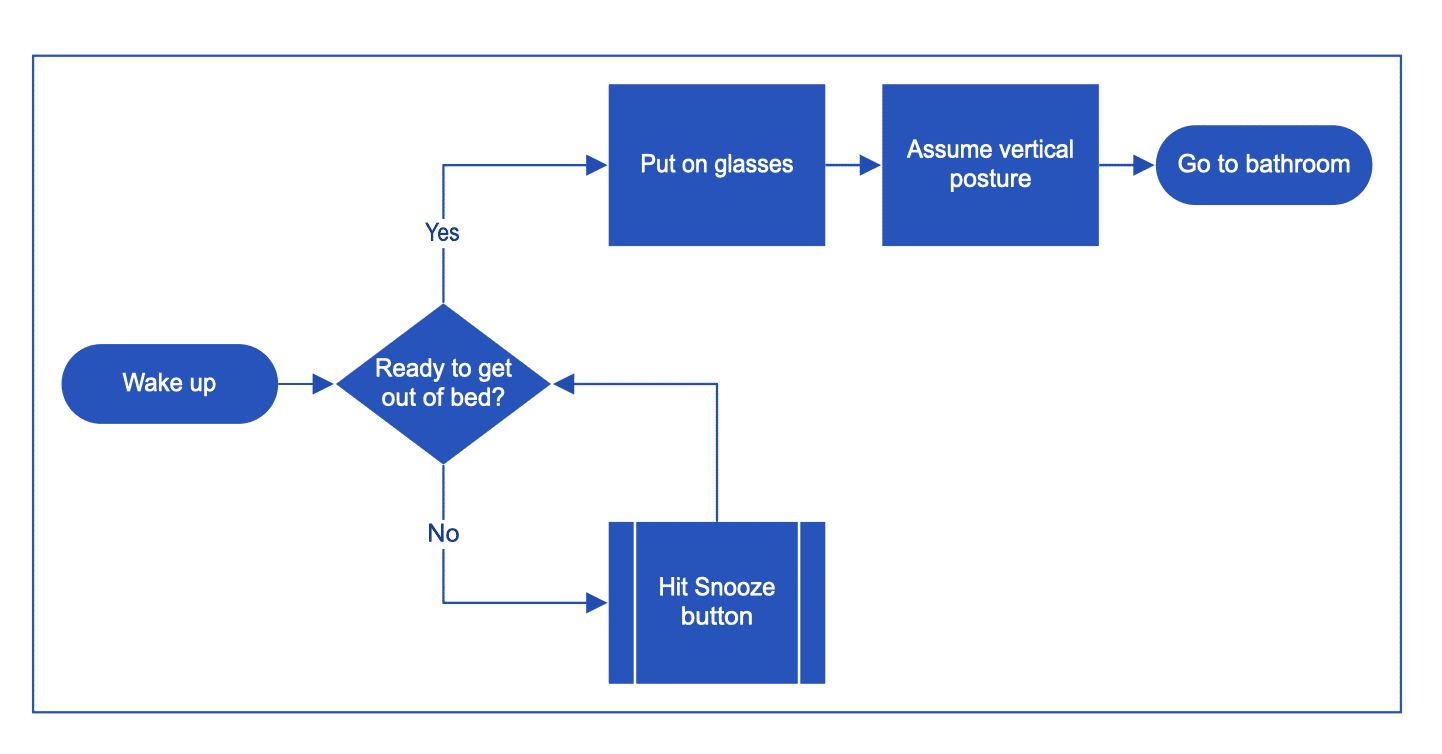

It’s an interesting tool and worth checking out if you make diagrams or flowcharts.  The add-in inserts example worksheets that you can use as templates for your own needs. We made this simple diagram from a worksheet in just a few minutes.

visio data visualizer converts excel into a diagram microsoft office 32338 - Visio Data Visualizer converts Excel into a diagram

Change the diagram from the linked worksheet.  Change label, add more rows etc and the diagram changes.

visio data visualizer converts excel into a diagram microsoft office 32339 - Visio Data Visualizer converts Excel into a diagram

Data Visualizer is an alternative to the diagram options already in Office which can be quite annoying and limited.

On the other hand, without an expensive Visio licence, the Data Visualizer diagrams can’t be customized or edited.  The color schemes are fixed.

Install

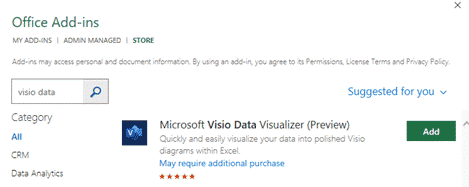

In Excel 365 for Windows, Mac or Online go to the Insert | Office Add-ins and search for ‘Visio Data’.  Add ‘Microsoft Visio Data Visualiser’.

Tip: do this from a blank worksheet because the add-in will automatically insert into the current workbook.

visio data visualizer converts excel into a diagram microsoft office 32340 - Visio Data Visualizer converts Excel into a diagram

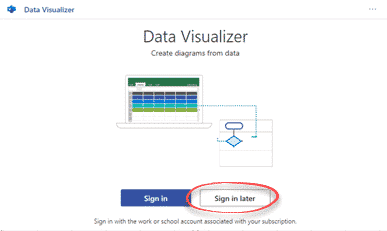

After it’s installed, the addin appears in the current worksheet.  If you have an appropriate Visio licence, choose ‘Sign In’ otherwise ‘Sign in later’ for most people.

visio data visualizer converts excel into a diagram microsoft office 32341 - Visio Data Visualizer converts Excel into a diagram

First time with Visio Data Visualizer

Insert a Data Visualizer into a worksheet from Insert | My Addins.

You could try converting an existing worksheet into a diagram but the worksheet has to be in a specific format.  It’s a lot easier to start from one of the supplied examples.

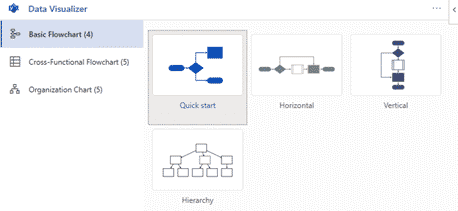

Basic Flowcharts

visio data visualizer converts excel into a diagram microsoft office 32342 - Visio Data Visualizer converts Excel into a diagram

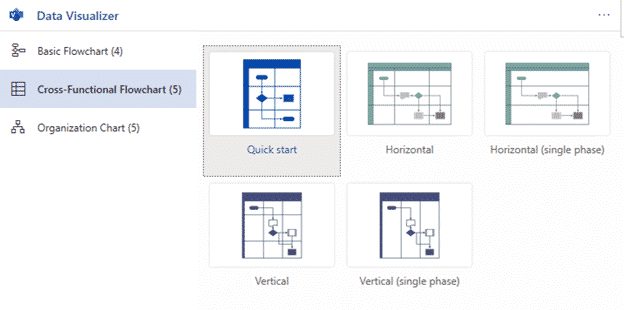

Cross-Functional Flowchart

visio data visualizer converts excel into a diagram microsoft office 32343 - Visio Data Visualizer converts Excel into a diagram

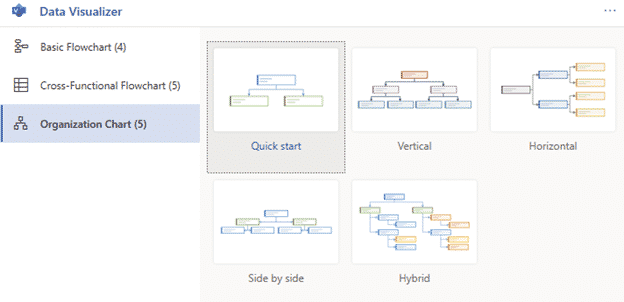

Organization Chart

visio data visualizer converts excel into a diagram microsoft office 32344 - Visio Data Visualizer converts Excel into a diagram

Making your own diagrams

Once you’ve chosen your starting diagram, check out the worksheet.  This is where you’ll change the supplied example into something you’ll use.  Each worksheet is different depending on the selected template.

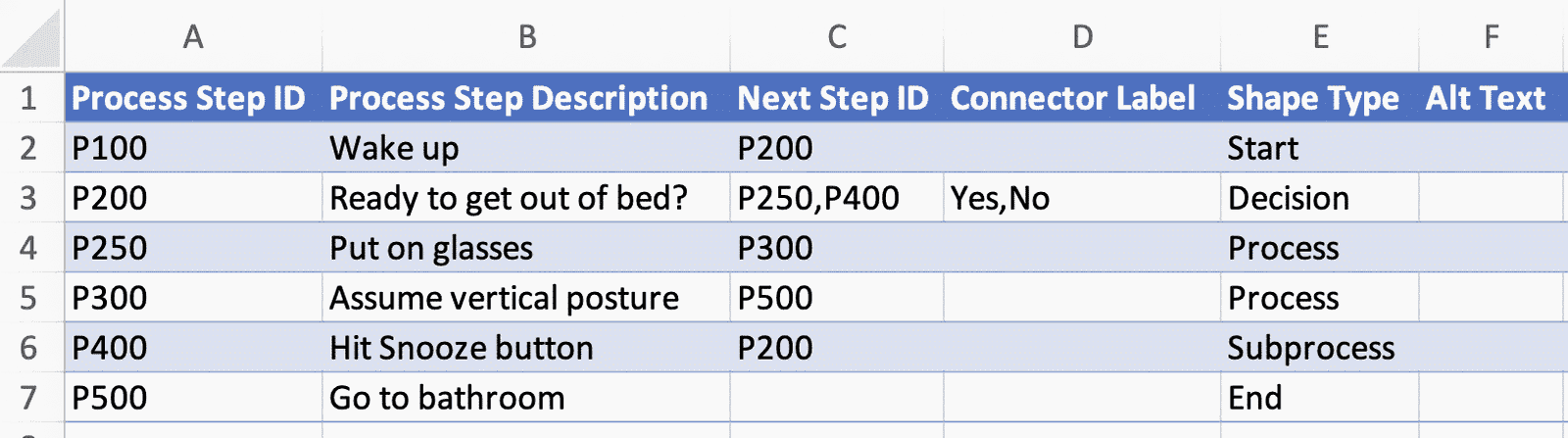

Some parts of the worksheet are common to all.  Let’s look at the Basic Flowchart worksheet.

Each element has a Process Step ID which is like old-fashioned coding line numbers that a BASIC programmer might remember. The defaults are in 100 increments so you can easily insert steps without renumbering, like we have with a new step P250.

visio data visualizer converts excel into a diagram microsoft office 32345 - Visio Data Visualizer converts Excel into a diagram

Next Step ID tells the add-in where to draw links between steps.

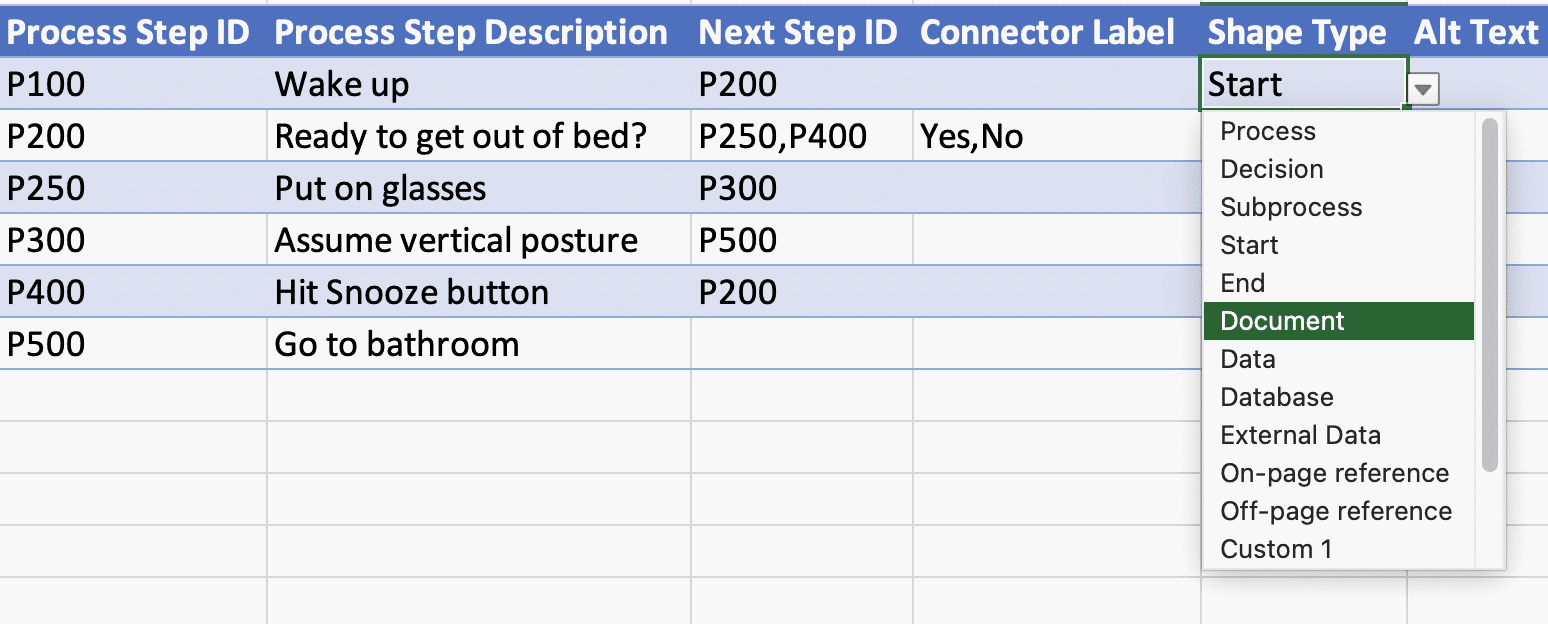

Shape Type is a pull-down list of available shapes/symbols for the diagram.

Some shapes need a Connector Label, e.g. Decision needs labels for Yes/No, Left/Right etc.

Process Step Description is the label inside the Shape.

Alt Text can be added to make the Shapes more accessible.

The sample worksheet is just the starting point. Add more rows, change Shape Types, switch them around … go crazy!

Click the Refresh button to see a revised diagram.  The add-in will show any errors like inconsistent Next Step ID’s.

Extend the worksheet

In the real world, you can extend the worksheet to add more columns relevant, things like cost, location, people etc. These columns don’t change the Visio diagram but let you integrate the worksheet into broader analysis.  Just for fun, we’ve added two columns to the original worksheet.

visio data visualizer converts excel into a diagram microsoft office 32346 - Visio Data Visualizer converts Excel into a diagram

Editing

If you don’t have a separate full Visio licence (expensive) the Edit button doesn’t work.

visio data visualizer converts excel into a diagram microsoft office 32347 - Visio Data Visualizer converts Excel into a diagram

Without a Visio licence, you’re stuck with the original color scheme and no other customizations allowed.

Bottom line: the only diagram changes possible are from the source worksheet, unless you can access full Visio.

Give it a try!

Our best advice is to give the Visio Data Vizualizer a try.  Open up a sample worksheet or two and see how it works.

The Office flowchart tool has always been annoying because the arrows between each step aren’t linked (i.e. move a shape and the arrows have to be moved individually).

The Data Visualizer is an interesting alternative.

According to Microsoft, Visio Data Visualizer is available in Excel 365 for Windows or Mac plus Excel Online.
